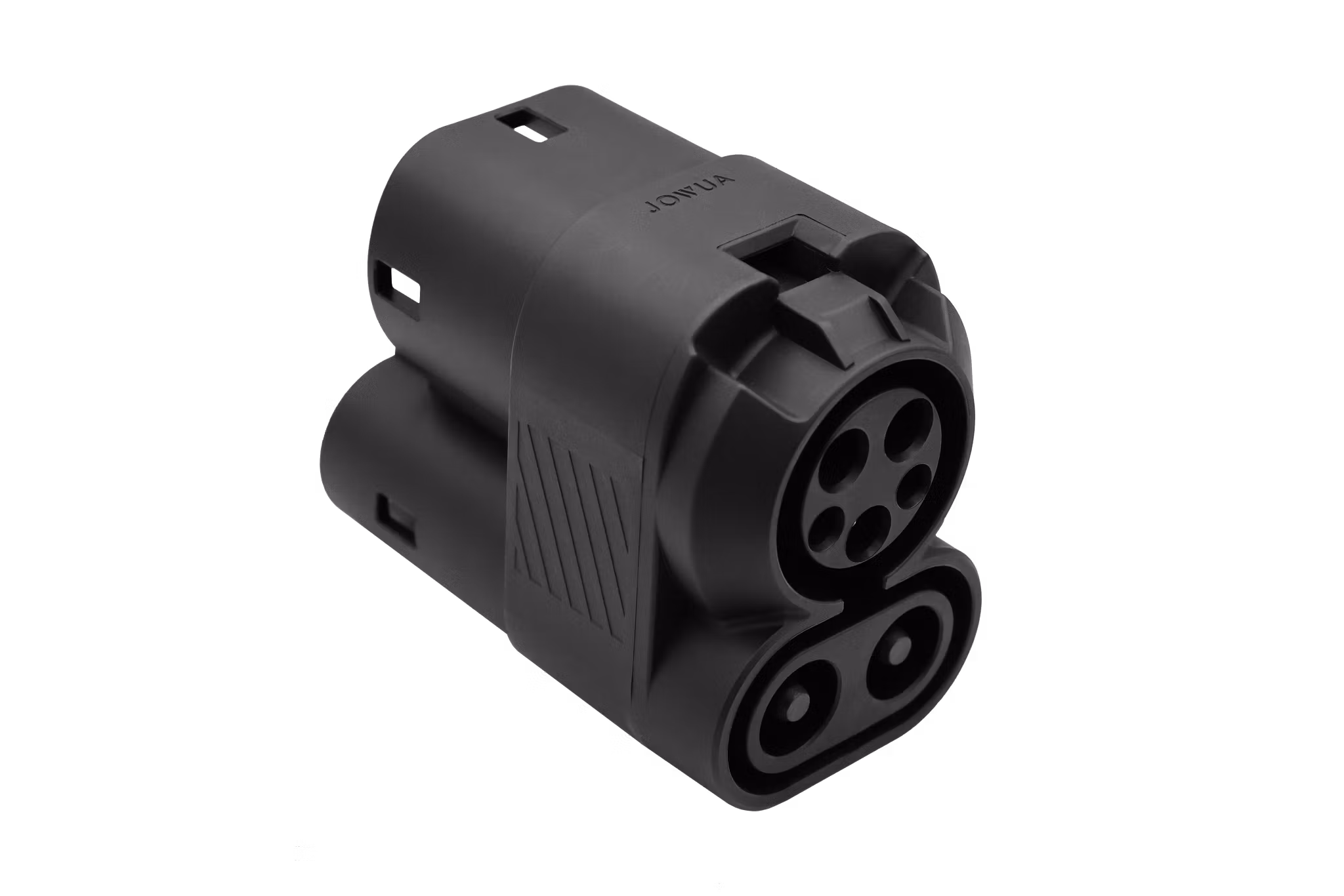

CCS1 to CCS2 Adapter
The item is sold out :(
- Glue-free film for easy installation
- Delivered pre-cut
- Tool kit included
- Assembly guarantee 30 days
- NOTE! No right of withdrawal. Check your order carefully.
Order individual films, click here
95% Black
Black film. Little transparency (VLT 5%). Reduces radiative heath by about 80%.
75% Dark
Dark film. Some transparency (VLT 25%). Reduces radiative heath by about 60%.
50% Smoke
Light smoke-colored film (VLT 50%). Discrete transparency. Reduces radiative heath by about 50%.
25% Ice
Light ice-blue film (VLT 75%) Normal transparency. Reduces radiative heath by about 85%.
Black film. Little transparency (VLT 5%). Reduces radiative heath by about 80%.
75% Dark
Dark film. Some transparency (VLT 25%). Reduces radiative heath by about 60%.
50% Smoke
Light smoke-colored film (VLT 50%). Discrete transparency. Reduces radiative heath by about 50%.
25% Ice
Light ice-blue film (VLT 75%) Normal transparency. Reduces radiative heath by about 85%.
Order individual films, click here
❗Only compatible with DC Fast Charging. Not compatible with AC Charging.
Description
Optimized for CCS2 Electric Vehicles

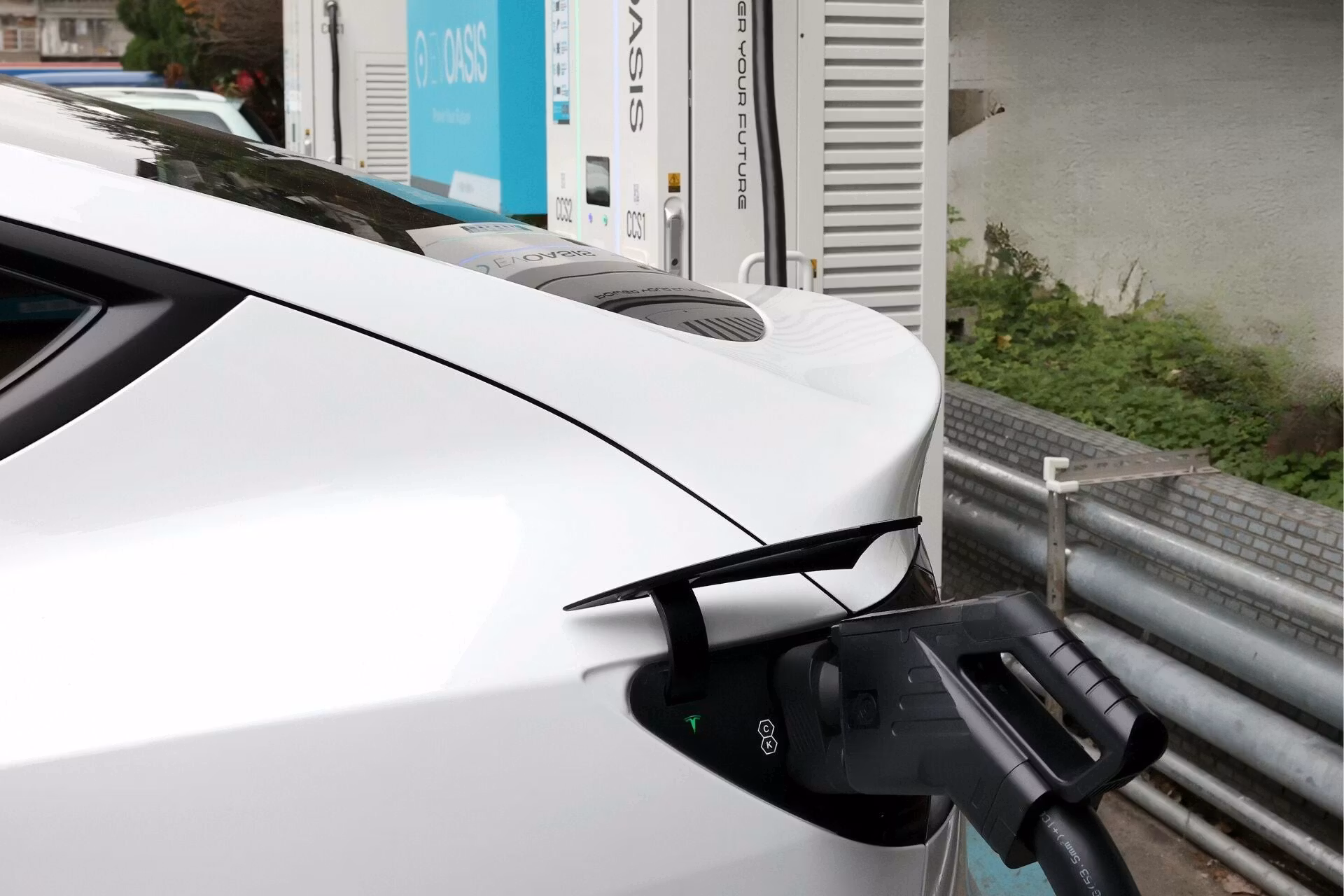

Effortlessly charge your European standard EV at any CCS1 Supercharger. Note: Exclusively for DC Supercharging stations; incompatible with J1772 AC wall connectors.

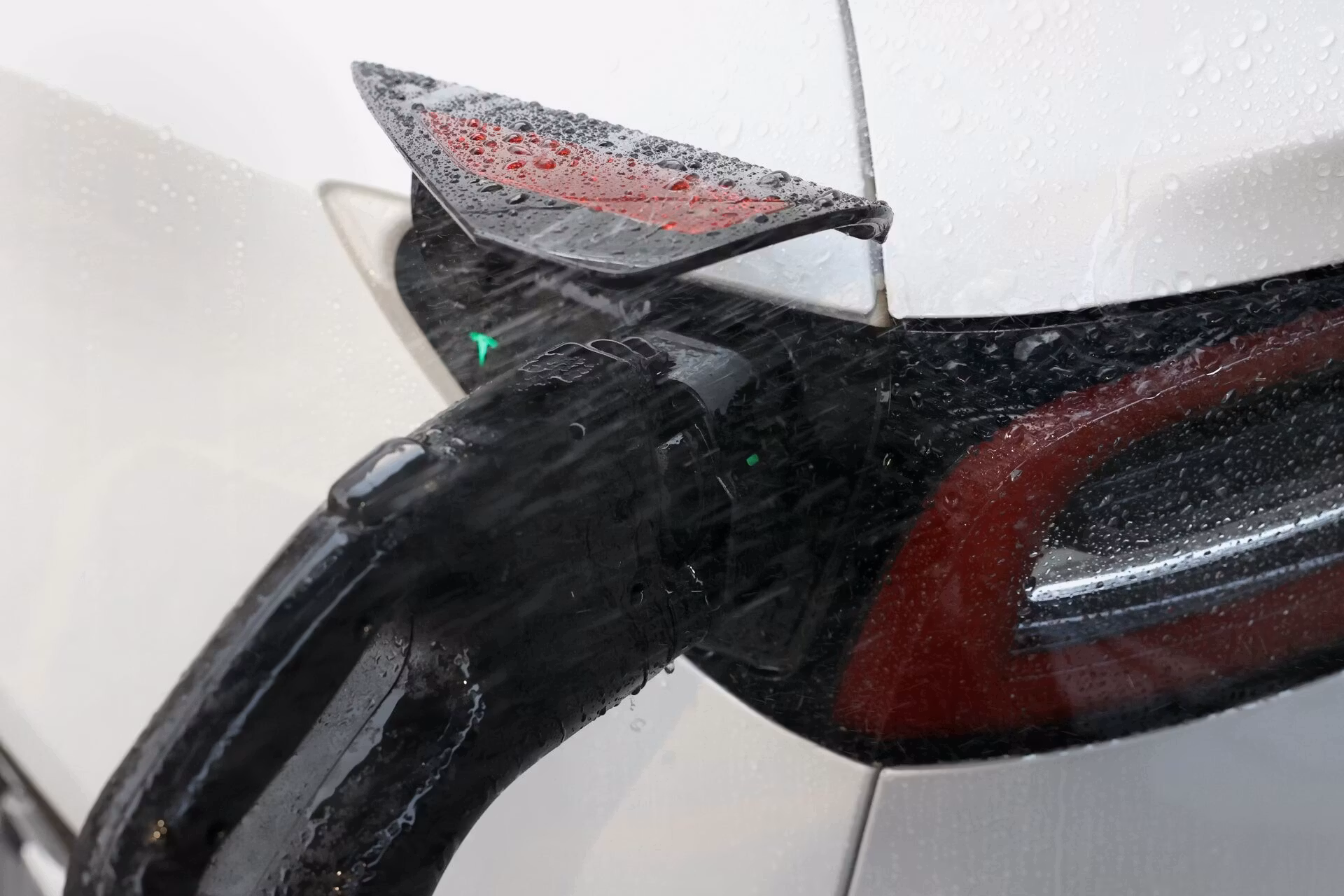

Superior Dust and Water Resistance
Engineered to be fully dust-tight and waterproof, ensuring reliable performance even on rainy days.
Enhanced Connector Longevity
Designed for durability with over 10,000 no-load plug cycles and an insertion force of less than 80N, for ease of use without compromising on reliability.
Advanced Electrical Specifications
Supports a wide voltage range from 300 to 1000V DC, with a maximum charging power of up to 250 kW, facilitating rapid charging.
Robust Protection
Constructed with a flame-retardant thermoplastic housing that meets the UL94 V-0 flammability standard for exceptional safety and protection.
Spec
| Voltage | 300 – 1000V (MAX) DC |
| Maximum Power | 250 kW |
| Insertion Force | F < 80N |
| Connector Durability | No-load plug/unplug > 10,000 cycles |
| Flame Retardant Grade | UL94 V-0 |
| Protection Grade | IP55 / IK08 |
| Ambient Temperature | -30°C to + 50°C |
| Charging Standards Compatibility | IEC 62196-3 |
